Timing Cover

Engine Front Cover

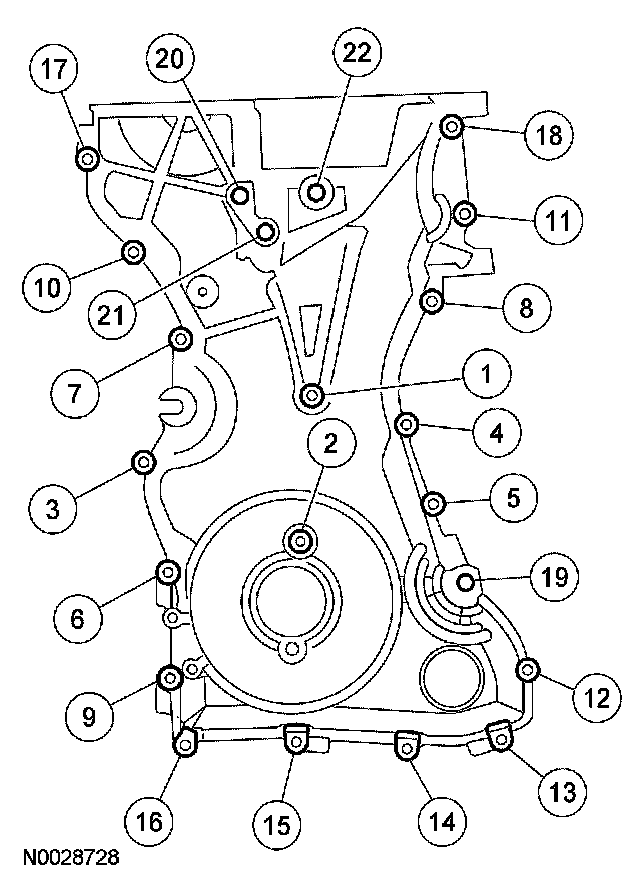

Install the engine front cover. Tighten the bolts in the sequence shown, to the following specifications:
Tighten the 8 mm bolts to 10 Nm (89 inch lbs.)
Tighten the 13 mm bolts to 48 Nm (35 ft. lbs.)

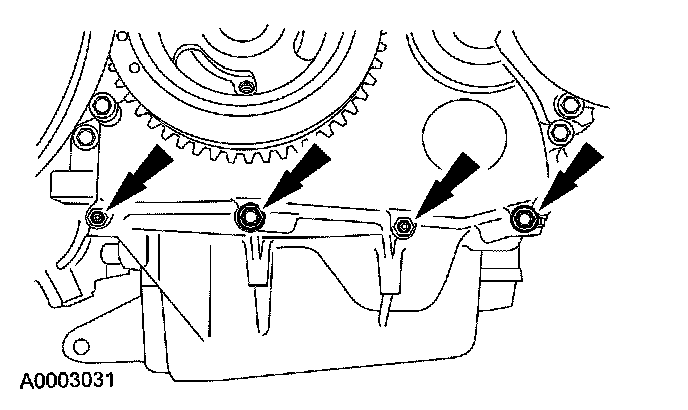

Engine Front Cover-to-oil Pan bolts
Install the 4 engine front cover-to-oil pan bolts.
Tighten to 10 Nm (89 inch lbs.).
