Flex Plate

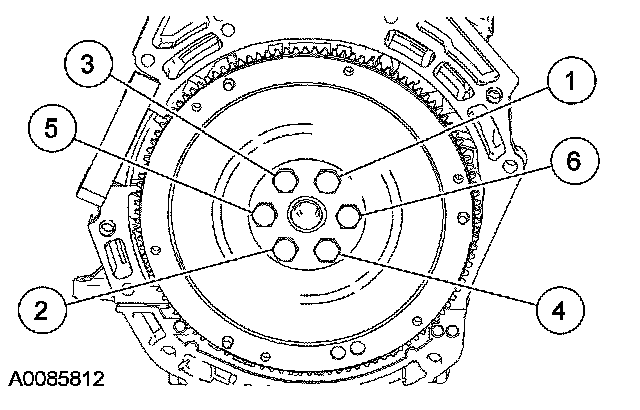

FlexplateTighten the bolts in the sequence shown in 3 stages:
Stage 1: Tighten to 50 Nm (37 ft. lbs.)
Stage 2: Tighten to 80 Nm (50 ft. lbs.)
Stage 3: Tighten to 112 Nm (83 ft. lbs.)
Tighten the bolts in the sequence shown in 3 stages:
Stage 1: Tighten to 50 Nm (37 ft. lbs.)
Stage 2: Tighten to 80 Nm (50 ft. lbs.)
Stage 3: Tighten to 112 Nm (83 ft. lbs.)
