Flywheel

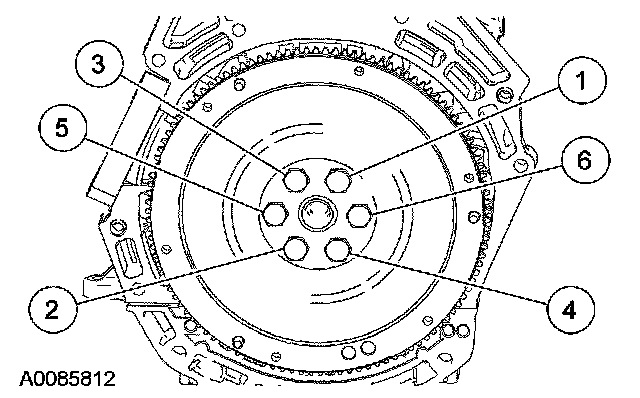

Flywheel and the 6 bolts.

NOTE: Special bolts are used for installation. Do not use standard bolts.

Tighten the bolts in the sequence shown in 3 stages.
Stage 1: Tighten to 50 Nm (37 ft. lbs.)
Stage 2: Tighten to 80 Nm (50 ft. lbs.)
Stage 3: Tighten to 112 Nm (83 ft. lbs.)
