Safety Belt Shoulder Height Adjuster: Notes

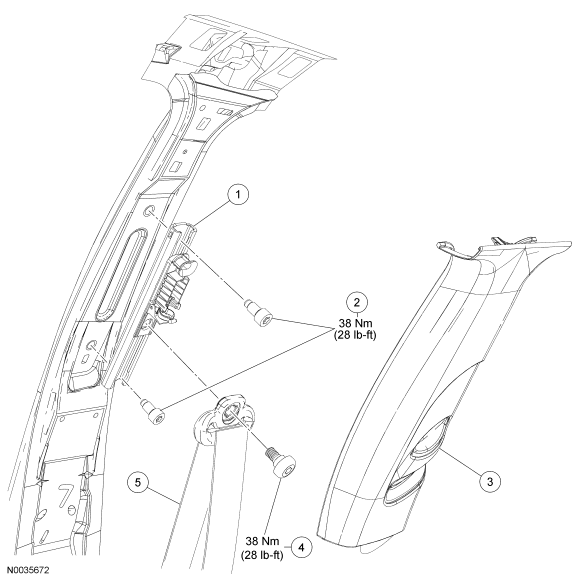

Fig 1: Safety Belt Shoulder Height Adjuster Replacement Components With Torque Specifications
GF0039022Courtesy of FORD MOTOR CO.
Item Part Number Description
1 611C46 Safety belt shoulder height adjuster
2 6K282 Bolts, safety belt shoulder height adjuster (2 required)
3 - Trim panel, B-pillar
4 W706158 Bolt, safety belt retractor anchor
5 611B08 Safety belt retractor prentensioner
