External Controls: Notes

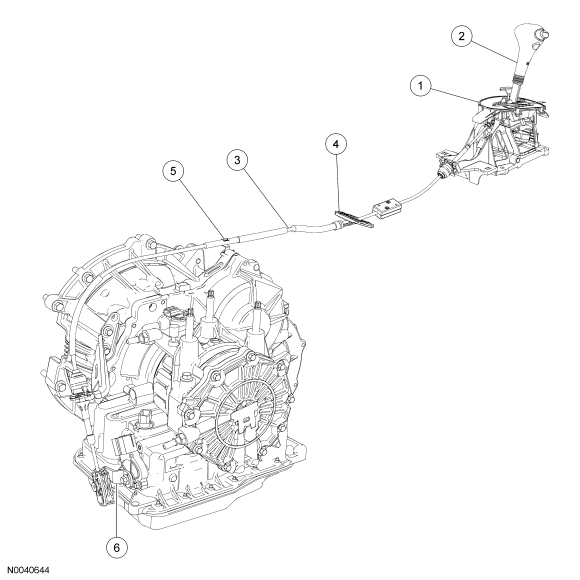

Fig 1: Identifying External Controls Components
GF0039977Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Selector lever assembly
2 - Selector lever
3 - Selector lever cable
4 - Selector lever cable grommet
5 - Selector lever cable clip
6 - Shift shaft lever
