Selector Lever Cable: Notes

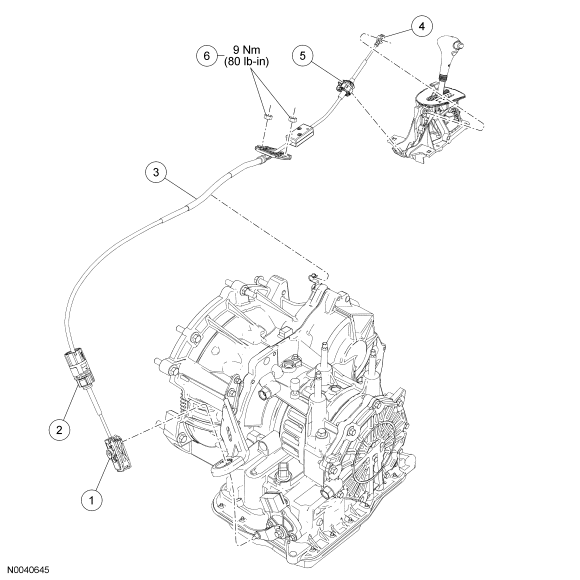

Fig 1: Selector Lever Cable Replacement Components With Torque Specifications
GF0040001Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7E395 Transmission selector lever cable eyelet
2 7E395 Transmission selector lever cable retainer
3 7E395 Transmission selector lever cable retainer
4 7E395 Transmission selector lever cable eyelet
5 7E395 Transmission selector lever cable retainer
6 HN1 Transmission selector lever cable grommet-to-body nuts
