Transmission Selector Lever: Notes

Material

Item Specification
Thread Sealant with PTFE
TA-24		 WSK-M2G350-A2

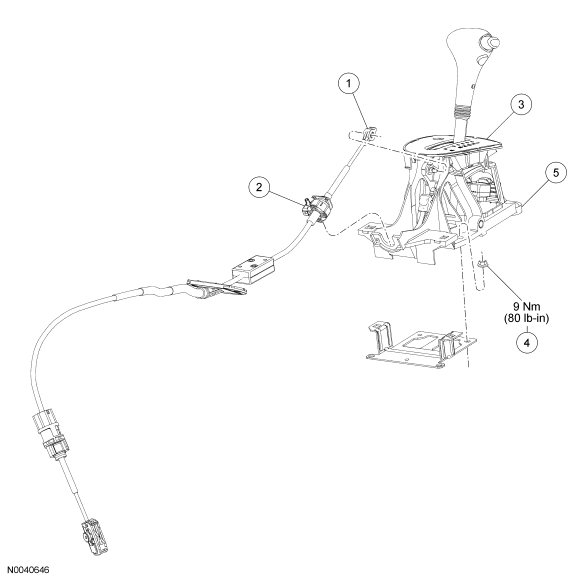

Fig 1: Transmission Selector Lever Replacement Components With Torque Specifications
GF0040017Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7E395 Transmission selector lever cable eyelet
2 7E395 Transmission selector lever cable retainer
3 - Transmission selector lever harness connector
4 - Transmission selector lever-to-body nut
5 7C453 Transmission selector lever
