ABS Control Module Connector

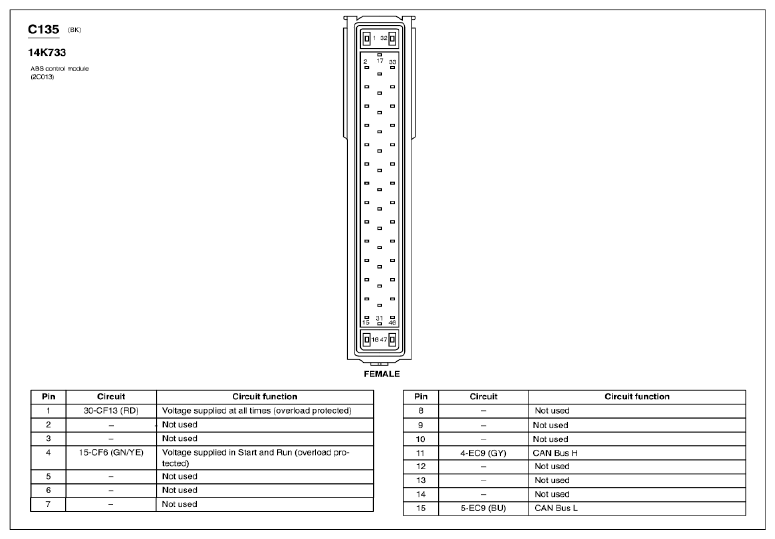

Fig 1: ABS Control Module Connector End View (C135) (1 Of 2)
G05180417Courtesy of FORD MOTOR CO.
Fig 2: ABS Control Module Connector End View (C135) (2 Of 2)
G05180418Courtesy of FORD MOTOR CO.

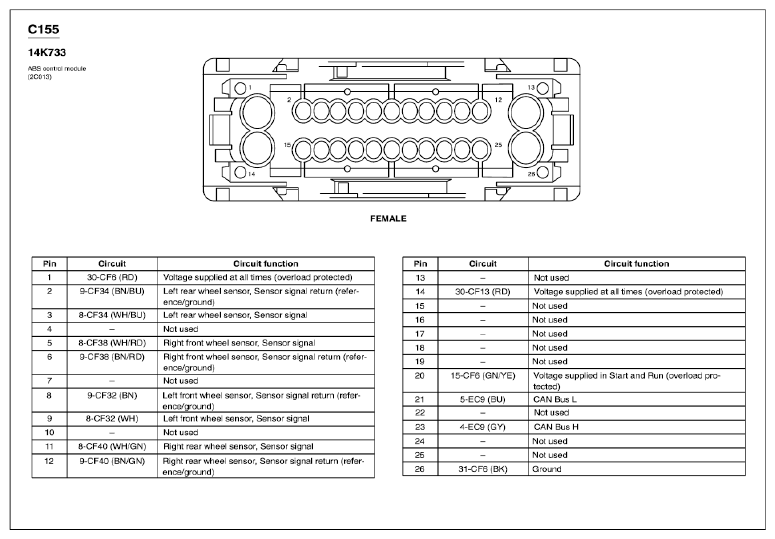

Fig 3: ABS Control Module Connector End View (C155)
G05180421Courtesy of FORD MOTOR CO.
