Powertrain Control Module (PCM) Connector

Fig 1: Powertrain Control Module (PCM) Connector End View (C175b) (1 Of 2)
G05180425Courtesy of FORD MOTOR CO.

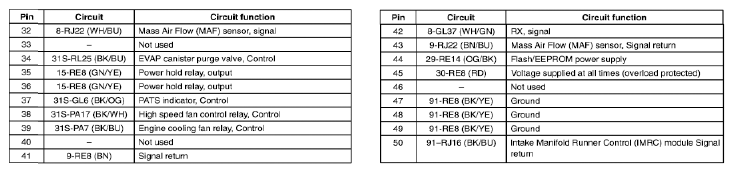

Fig 2: Powertrain Control Module (PCM) Connector End View (C175b) (2 Of 2)
G05180426Courtesy of FORD MOTOR CO.

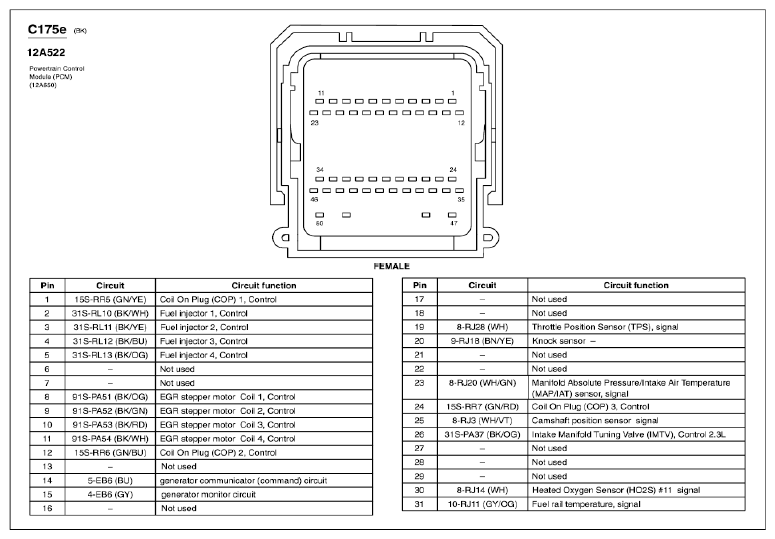

Fig 3: Powertrain Control Module (PCM) Connector End View (C175e) (1 Of 2)
G05180427Courtesy of FORD MOTOR CO.

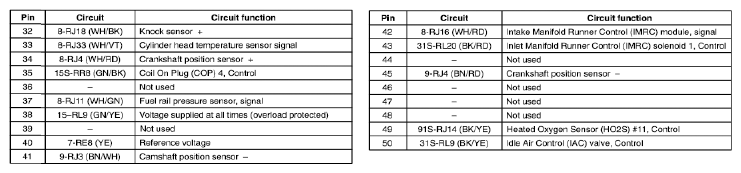

Fig 4: Powertrain Control Module (PCM) Connector End View (C175e) (2 Of 2)
G05180428Courtesy of FORD MOTOR CO.

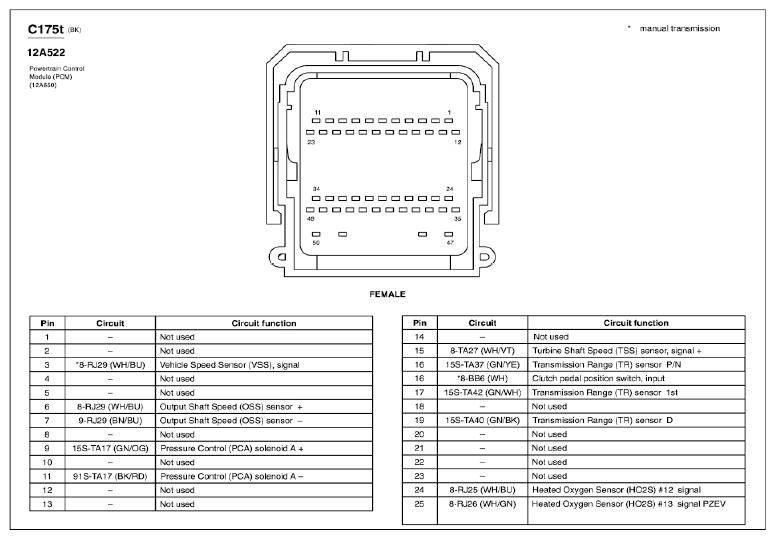

Fig 5: Powertrain Control Module (PCM) Connector End View (C175t) (1 Of 2)
G05180429Courtesy of FORD MOTOR CO.

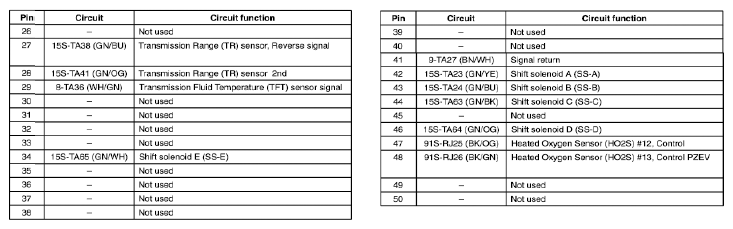

Fig 6: Powertrain Control Module (PCM) Connector End View (C175t) (2 Of 2)
G05180430Courtesy of FORD MOTOR CO.
