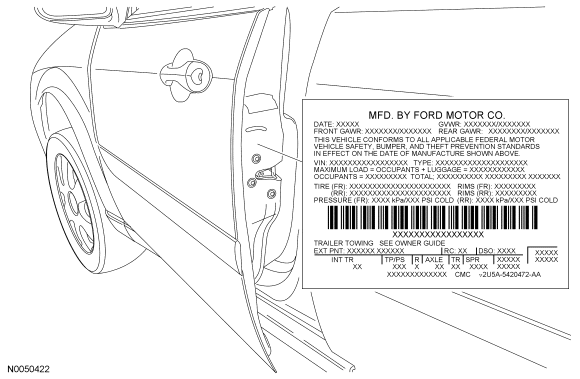

Vehicle Certification (VC) Label: Notes
The vehicle certification (VC) label contains the manufacturer name, the month and year of manufacture, the certification statement and the VIN. It also includes gross vehicle weight ratings (GVWR) and tire information.
| Item | Description |
|---|---|
| 1 | Exterior paint code |
| 2 | Region code |
| 3 | Domestic special order code |
| 4 | Interior trim code |
| 5 | Tape/paint stripe code |
| 6 | Radio code |
| 7 | Axle code |
| 8 | Transmission code |
| 9 | Spring code |
| 10 | Powertrain calibration code |
The first set of paint code numbers/letters indicate the vehicle primary body color. The second set of letters/numbers (if applicable) indicate a 2-tone or accent body color. All paint codes are a base coat/clear coat finish.
- CX - Dark Shadow Gray
- D6 - Screaming Yellow
- E4 - Vermilion
- G3 - Pueblo Gold
- JL - Dark Toreador Red
- NZ - Kiwi Green
- TH - Aqua Blue
- TS - Silver Frost
- UA - Ebony
- YZ - Oxford White
The interior trim codes are listed below. The first digit listed indicates the seat and fabric style. The second digit listed indicates the interior trim color.
Trim Codes
- 8 - Mortar cloth (ZX4)
- F - Perforated preferred suede
- T - Mortar cloth (ZX3/ZX5)
- U - Hopscotch cloth (ZX3/ZX5)
- W - Mosaic cloth (ZX4/ZXW)
- X - Impulse cloth (ST)
- Y - Milled pebble leather (ZX3/ZX5)
- Z - Milled pebble leather (ZX4/ZXW)
Interior Trim Color Codes
- B - Charcoal Black
- L - Charcoal/Medium Light Flint
- P - Medium Pebble
Tape and paint stripe codes do not apply.
- 2 - GAP - AM/FM stereo with compact disc (CD) player and MP3
- 3 - GAP - AM/FM stereo with CDX-6 CD changer
- 4 - GAP Audiophile - AM/FM stereo with CDX-6 CD changer and MP3
The following lists the axle ratios.
- UU - 3.82 with 2.0L engine
- WW - 3.73 with 2.0L engine
- ZZ - 3.82 with 2.3L engine
- 2 - 4-speed automatic
- Z - 5-speed manual (MTX75)
Spring codes identify both front and rear springs. The first set of characters identify the front springs. The second set of characters identify the rear springs.
Front Springs
- AA - 6S43-5310-AB
- BA - 6S43-5310-BA
- CC - 6S43-5310-CB
Rear Springs
- AA - 6S43-5560-AA
- BA - 6S43-5560-BA
- FA - 6S43-5560-FA
- HA - 6S43-5560-HA
