Occupant Classification Sensor: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) | software with appropriate hardware, or equivalent scan tool |
NOTE:
A production OCS system is shown, an OCS service kit is similar.

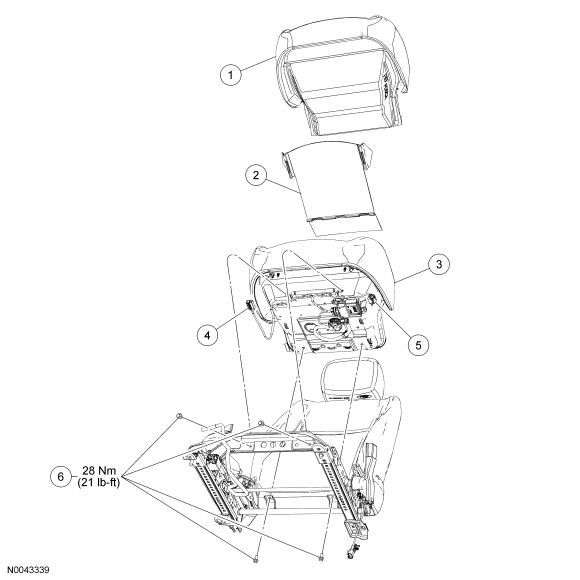

| Item | Part Number | Description |
|---|---|---|
| 1 | 62900 | Seat cushion trim cover |
| 2 | 632A22A | Cushion heated seat element |
| 3 | 632A22B | Occupant classification sensor (OCS) assembly (wiring harness, seat cushion pan, seat cushion foam pad, bladder with pressure sensor and occupant classification system module [OCSM]) |
| 4 | - | OCS electrical connector (2 required) (part of 632A22B) |
| 5 | - | Belt tension sensor electrical connector (part of 61202) |
| 6 | W500022 | Front seat cushion pan bolts (4 required) |
