Restraints Control Module (RCM): Notes

Special Tools

Illustration	Tool Name	Tool Number
	Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS)	software with appropriate hardware, or equivalent scan tool

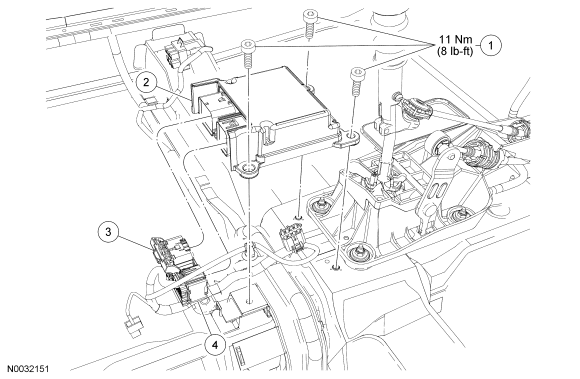

Fig 1: Restraints Control Module (RCM) Replacement Components (With Torque Specification)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W704265	Restraints control module (RCM) bolts (3 required)
2	14B056	RCM
3	-	Large RCM electrical connector (part of 14014)
4	-	Small RCM electrical connector (part of 14401)
