Ignition switch (11572): Schematic

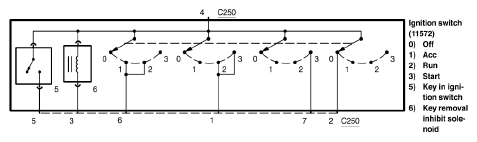

Fig 1: Ignition Switch (11572) - Schematic
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
