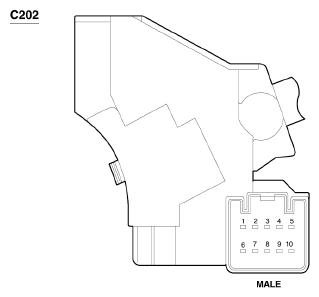

Terminal locations
Component testing procedure
MULTIFUNCTION SWITCH - COMPONENT TESTING
| Circuit to test | Connect self-powered test light or ohmmeter to terminals | Move switch to these positions | A good switch will indicate |
|---|---|---|---|
| Headlamp flasher | 6 and 7 | Neutral | Open circuit |
| Headlamp flasher | Closed circuit | ||
| High beam | Closed circuit | ||
| Headlamp flasher | 8 and 9 | Neutral | Closed circuit |
| Headlamp flasher | Closed circuit | ||
| High beam | Open circuit | ||
| High beam | 6 and 7 | Neutral | Open circuit |
| Headlamp flasher | Closed circuit | ||
| High beam | Closed circuit | ||
| High beam | 8 and 7 | Neutral | Open circuit |
| Headlamp flasher | Open circuit | ||
| High beam | Closed circuit | ||
| Low beam | 8 and 9 | Neutral | Closed circuit |
| Headlamp flasher | Closed circuit | ||
| High beam | Open circuit | ||
| LH turn signal | 2 and 1 | Neutral | Open circuit |
| Flash left (no detent) | Closed circuit | ||
| LH turn signal | Closed circuit | ||
| RH turn signal | 2 and 3 | Neutral | Open circuit |
| Flash right (no detent) | Closed circuit | ||
| RH turn signal | Closed circuit | ||
| Buzzer | 4 and 5 | 40--50 Ω |
