Power window switches: Schematic

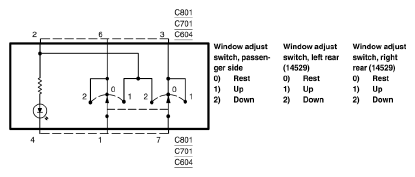

Fig 1: Power Window Switches - Schematic

G05180402

Courtesy of FORD MOTOR CO.
