Speed Control Cable: Notes

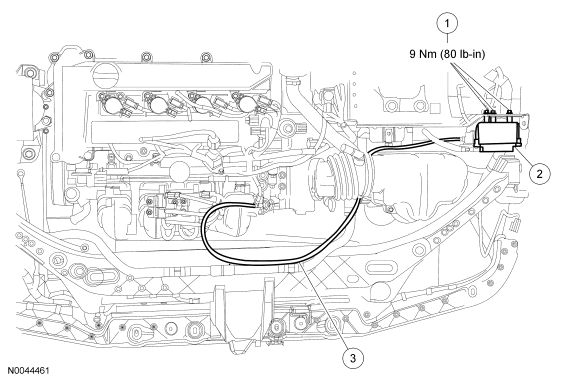

Fig 1: Speed Control Cable With Torque Specifications
GF0040275Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Speed control actuator bolts (3 required)
2 9C735 Speed control actuator
3 9A820 Speed control cable
