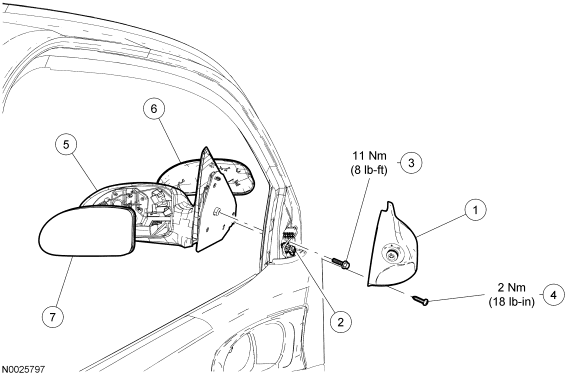

Exterior Mirrors - Exploded View
NOTE:
The LH side is shown, the RH side is similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Trim cover |
| 2 | - | Exterior mirror electrical connector (part of 14631) |
| 3 | W704528 | Exterior mirror bolt |
| 4 | W704710 | Exterior mirror screw |
| 5 | 17682/17683 | Exterior mirror RH/LH |
| 6 | 1461054/ 1461055 | Exterior mirror cover RH/LH |
| 7 | 1461082/ 1461083 | Mirror glass |
- For additional information, refer to the appropriate procedures.
