Seat Backrest - Rear: Notes

NOTE: Three-door and 5-door backrest shown, 4-door and wagon similar.

Fig 1: Exploded View Of Seat Backrest - Rear, Front View With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W703112	Bolt, rear center safety belt retractor safety belt lower anchor and safety belt buckle assembly (part of 611B68)
2	611B68	Rear center safety belt retractor safety belt lower anchor and safety belt buckle assembly
3	W700883	Bolt, rear outboard safety belt retractor safety belt lower anchor (LH) (part of 611B68)
4	611B68	Rear outboard safety belt retractor safety belt lower anchor (LH)
5	W700883	Bolt, rear outboard safety belt retractor safety belt lower anchor (RH) (part of 611B68)
6	611B68	Rear outboard safety belt retractor safety belt lower anchor (RH)
7	-	Backrest assembly, 60 percent
8	-	Backrest assembly, 40 percent
9	-	Cushion assembly

NOTE: Three-door and 5-door backrest shown, 4-door and wagon similar.

Fig 2: Exploded View Of Seat Backrest - Rear, Rear View With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Backrest assembly, 40 percent
2	-	Backrest assembly, 60 percent
3	W704251	Bolt, center hinge (4 required)
4	613B90/613B91	Center hinge (RH/LH)
5	W704251	Bolt, outboard hinge (RH) (4 required)
6	613B90	Outboard hinge (RH)
7	W704251	Bolt, outboard hinge (LH) (4 required)
8	613B91	Outboard hinge (LH)

NOTE: Three-door and 5-door backrest shown, wagon similar.

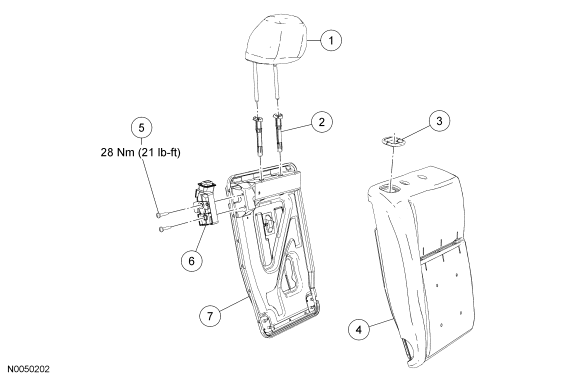

Fig 3: Exploded View Of Seat Backrest - Rear, 40 Percent, 3 And 5 Door With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	610A60	Head restraint
2	610B16	Head restraint guide (2 required)
3	624A08	Backrest release button shroud
4	66600/66800	Backrest trim cover / foam pad
5	W704093	Screw, backrest latch (2 required)
6	61382	Backrest latch assembly
7	60508	Backrest frame

NOTE: Three-door and 5-door backrest shown, wagon similar.

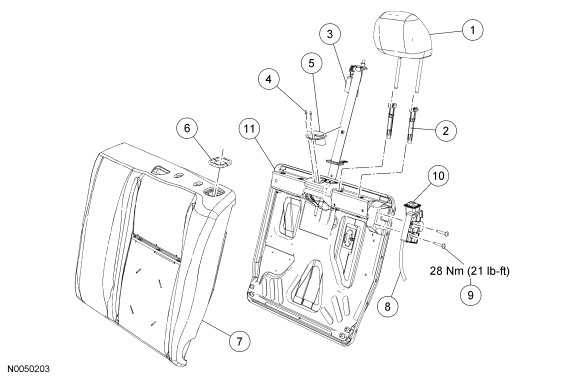

Fig 4: Exploded View Of Seat Backrest - Rear, 60 Percent, 3 And 5-Door With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	610A60	Head restraint
2	610B16	Head restraint guide (2 required)
3	611B68	Rear center safety belt retractor safety belt lower anchor and safety belt buckle assembly
4	624R08	Rivets, rear center safety belt guide (2 required)
5	624A08	Rear seat center safety belt guide
6	624A08	Backrest release button shroud
7	66601/66801	Backrest trim cover / foam pad
8	-	Safety belt retractor lock cable (Bowden cable part of 61383)
9	W704093	Screw, backrest latch (2 required)
10	61383	Backrest latch assembly
11	61509	Backrest frame

NOTE: Sixty percent backrest shown, 40 percent similar.

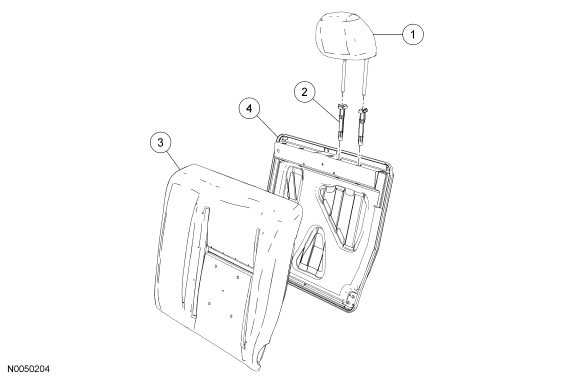

Fig 5: Exploded View Of Seat Backrest - Rear, 4-Door

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	610A60	Head restraint
2	610B16	Head restraint guide (2 required)
3	66601/66801	Backrest trim cover / foam pad
4	67205	Backrest frame
