Seat - Exploded View, Front

NOTE: Driver seat shown, passenger seat similar.

Fig 1: Exploded View Of Seat Backrest - Front With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	610A60	Head restraint assembly
2	610A16	Head restraint guides (2 required)
3	611D11	Side airbag module assembly (if equipped)
4	W520201	Side airbag module nuts (2 required, part of 611D11, if equipped)
5	611C10	Side air bag protective cover
6	626F49	Backrest recliner lever handle
7	W505003	Backrest recliner handle screw
8	-	Pin, inboard side shield
9	W505002	Screw, inboard side shield
10	62187	Inboard side shield
11	61203	Safety belt buckle assembly
12	61212	Safety belt buckle bolt
13	647K12	Outboard side shield
14	64417/64811	Backrest trim cover / foam pad
15	14D696	Heated seat element
16	61704	Seat track assembly
17	62763	Backrest release lever handle
18	W505003	Backrest release lever handle screw
19	W520203	Backrest-to-seat track bolt (4 required)
20	61019	Backrest frame assembly

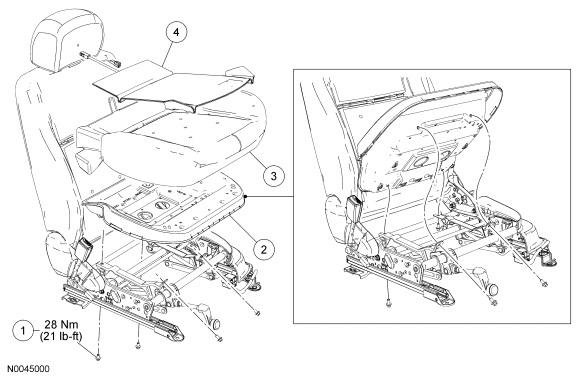

Fig 2: Exploded View Of Seat Cushion - Front, Driver With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W500022	Cushion frame bolts (4 required)
2	60326	Cushion frame
3	62900/632A22	Cushion trim cover / foam pad
4	14D696	Cushion heated seat element

Fig 3: Exploded View Of Seat Cushion - Front, Passenger With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	62900	Cushion trim cover
2	632A22A	Cushion heated seat element
3	632A22B	Occupant classification sensor (OCS) assembly (wiring harness, seat cushion pan, seat cushion foam pad, bladder with pressure sensor and occupant classification system module [OCSM])
4	-	OCSM electrical connectors (2 required, part of 632A22B)
5	-	Belt tension sensor electrical connector (part of 61202)
6	W500022	Cushion frame bolts (4 required)
