Seat - Front: Notes

NOTE: Driver seat shown, passenger seat similar.

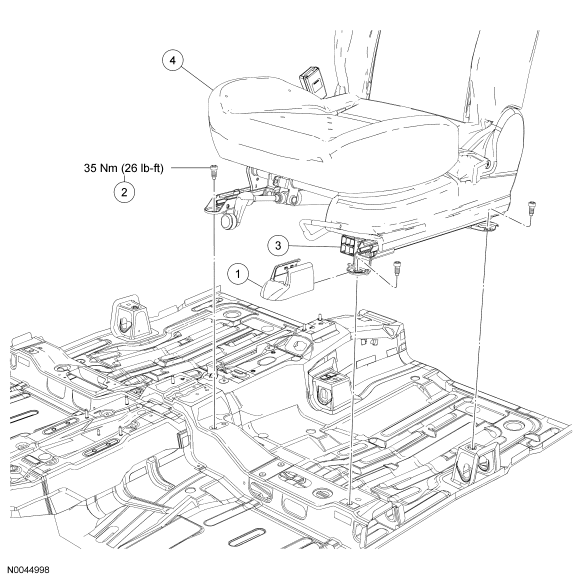

Fig 1: Seat Replacement Components -- Front (With Torque Specification)
GF0038680Courtesy of FORD MOTOR CO.
Item Part Number Description
1 61748 Seat track trim cover
2 W700883 Seat-to-floor bolt (4 required)
3 - Electrical connector
4 - Front seat assembly
