Audio Unit: Notes

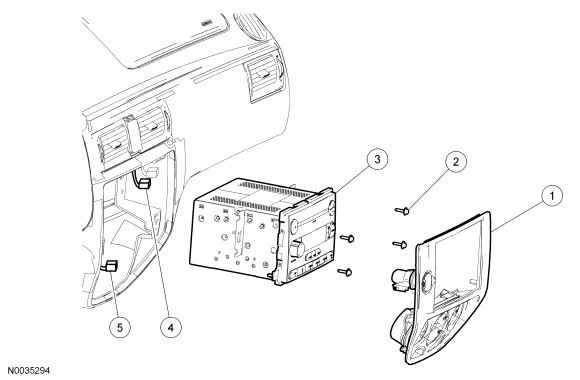

Fig 1: Exploded View Of Audio Unit
GF0040569Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Instrument cluster center finish panel
2 - Audio unit screws (4 required)
3 18C869/18C815 Audio unit
4 - Audio unit electrical connectors (part of 14401)
5 - Instrument cluster center finish panel electrical connectors (part of 14401)
