Quarter Panel Speaker: Notes

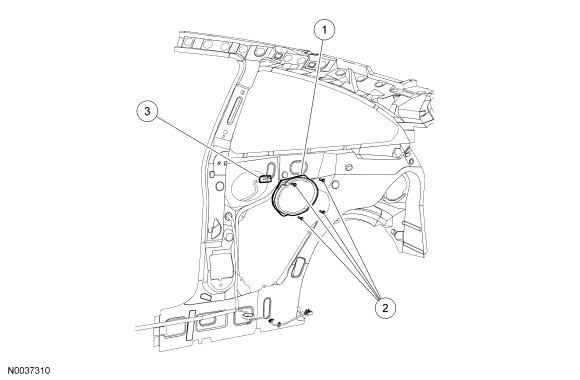

Fig 1: Identifying Quarter Panel Speaker Components
GF0040571Courtesy of FORD MOTOR CO.
Item Part Number Description
1 18808 Quarter panel speaker
2 - Quarter panel speaker screws (4 required)
3 - Quarter panel speaker electrical connector (part of 14014)
