Speaker Enclosure: Notes

NOTE: 4-door shown, all others similar.

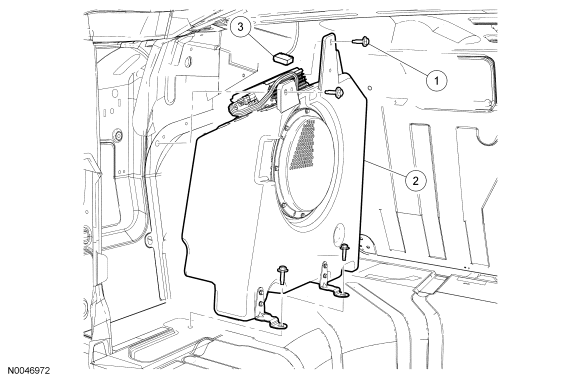

Fig 1: Identifying Speaker Enclosure Components
GF0040572Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W505424-S Speaker enclosure bolts (4 required)
2 18808 Speaker enclosure
3 - Subwoofer amplifier electrical connector (part of 14014)
