Subwoofer Amplifier: Notes

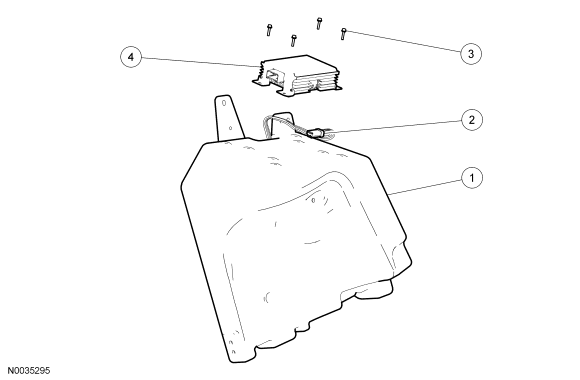

Fig 1: Identifying Subwoofer Amplifier Components
GF0040573Courtesy of FORD MOTOR CO.
Item Part Number Description
1 18808 Speaker enclosure
2 - Subwoofer amplifier electrical connector (part of 18808)
3 - Subwoofer amplifier screws (4 required)
4 18C808 Subwoofer amplifier
