Exhaust System - Exploded View

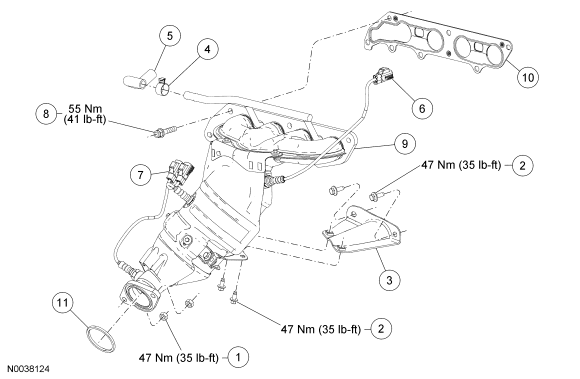

Fig 1: Exploded View Of Exhaust System - Vehicles With 2.0L PZEV Engines With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W705443	Flex pipe-to-converter nut (2 required)
2	5849	Catalytic converter-to-engine bracket bolts (4 required)
3	5K222	Catalytic converter-to-engine bracket
4	W527207	Secondary air injection (AIR) tube clamp
5	9B466	AIR tube
6	14A464	Heated oxygen sensor (HO2S) electrical connector
7	14A464	HO2S and catalyst monitor sensor electrical connectors
8	W703933	Exhaust manifold nut and stud (7 required)
9	5G232	Exhaust manifold and converter assembly
10	9448	Exhaust manifold and converter assembly-to-engine gasket
11	9451	Exhaust manifold and converter assembly-to-flex pipe gasket

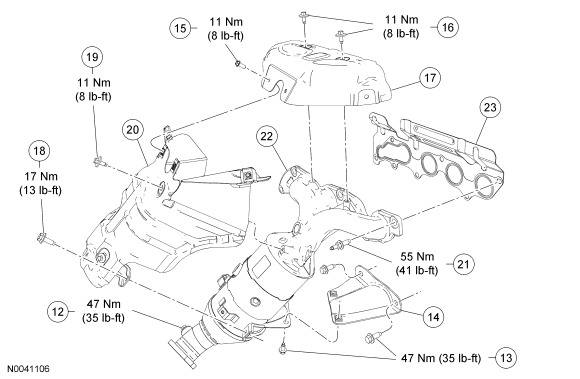

Fig 2: Exploded View Of Exhaust System - Vehicles With 2.0L Non-PZEV Engines With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
12	W705443	Flex pipe-to-converter nut (2 required)
13	5849	Catalytic converter-to-engine bracket bolts (4 required)
14	5K222	Catalytic converter-to-engine bracket
15	-	Upper heat shield lower screw (4 required)
16	W503922	Upper heat shield upper bolts (2 required)
17	-	Upper heat shield (part of 5K282)
18	N811340	Lower heat shield assembly bolt (2 required)
19	W503922	Lower heat shield assembly screw
20	5K282	Lower heat shield assembly
21	W703933	Exhaust manifold nut and stud
22	5G232	Exhaust manifold and converter assembly
23	9451	Exhaust manifold and converter assembly-to-engine gasket

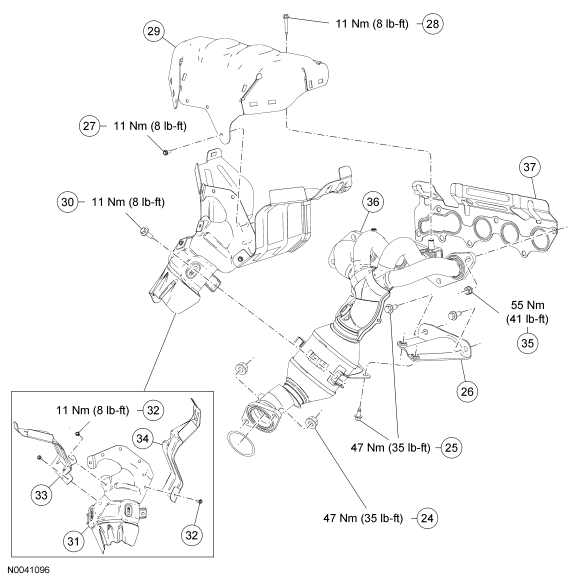

Fig 3: Exploded View Of Exhaust System - Vehicles With 2.3L Engines With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
24	W7035443	Flex pipe-to-converter nut (2 required)
25	5849	Catalytic converter-to-engine bracket bolts (4 required)
26	5K222	Catalytic converter-to-engine bracket
27	-	Upper heat shield lower screw (3 required) (part of EK070630)
28	-	Upper heat shield upper bolt (2 required) (part of EK070630)
29	EK070630	Upper heat shield
30	N811340	Lower heat shield assembly bolt (2 required)
31	EK070630	Lower center heat shield
32	-	Lower side heat shield screw (3 required) (part of EK070630)
33	EK070630	LH lower side heat shield
34	EK070630	RH lower side heat shield
35	W703662	Exhaust manifold nut (7 required)
36	5G232	Exhaust manifold and converter assembly
37	9448	Exhaust manifold and converter assembly-to-engine gasket

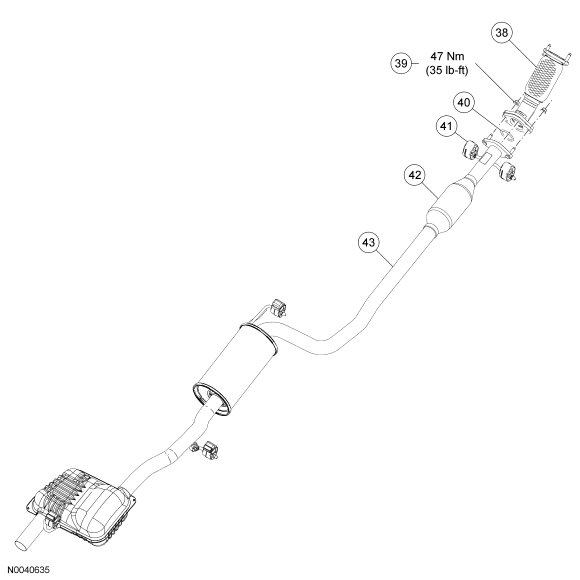

Fig 4: Exhaust Manifold And Converter Assembly Replacement Components - All Vehicles With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
38	5G203	Flex pipe
39	W705443	Flex pipe-to-muffler and tailpipe assembly nut (2 required)
40	9451	Flex pipe-to-muffler and tailpipe assembly gasket
41	5A262	Muffler and tailpipe assembly isolator (5 required)
42	-	Catalytic converter (part of 5E292)
43	5E292	Muffler and tailpipe assembly
