Fuel Pump Driver Module (FPDM)

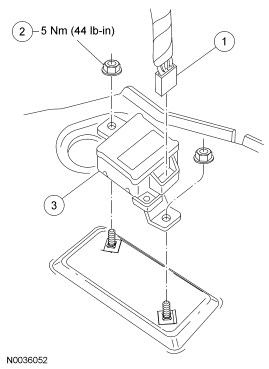

Fig 1: Fuel Pump Driver Module (FPDM) Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Fuel pump driver module (FPDM) electrical connector
2	W805320	FPDM nut (2 required)
3	9D372	FPDM

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES article.
Pull up the rear seat.
Position the floor covering to one side.
Disconnect the fuel pump driver module (FPDM) electrical connector.
Remove the 2 nuts and the FPDM.
- To install, tighten to 5 Nm (44 lb-in).
To install, reverse the removal procedure.
