Cylinder Head: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Alignment Plate, Camshaft | 303-465 (T94P-6256-CH) |
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |
| Silicone Gasket Remover ZC-30 |
- |
| Motorcraft Metal Surface Prep ZC-31 |
- |
| Silicone Gasket and Sealant TA-30 |
WSE-M4G323-A4 |

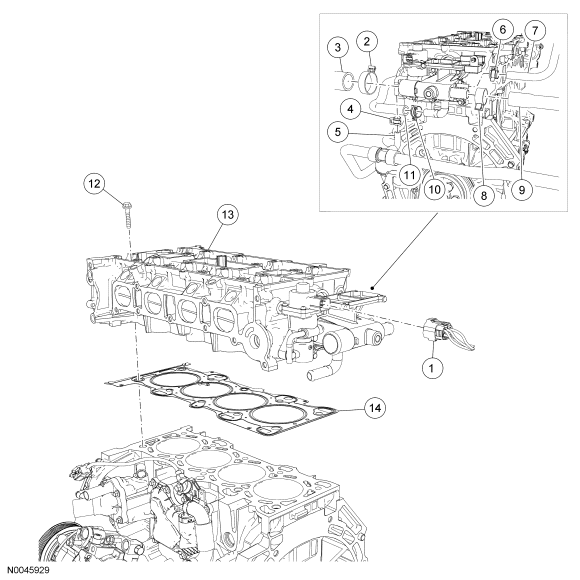

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Exhaust gas recirculation (EGR) valve electrical connector (part of 12B637) |
| 2 | 8287 | Upper radiator hose clamp |
| 3 | 8260 | Upper radiator hose |
| 4 | W52592 | EGR coolant tube clamp |
| 5 | 18K580 | EGR coolant hose (part of heater hose) |
| 6 | - | Engine coolant vent hose clamp (part of 8W005) |
| 7 | 8W005 | Engine coolant vent hose |
| 8 | - | Heater hose clamp (part of 18K580) |
| 9 | 18K580 | Heater hose |
| 10 | W525958 | Bypass hose clamp |
| 11 | 8548 | Bypass hose |
| 12 | 6065 | Cylinder head bolt (10 required) |
| 13 | 6050 | Cylinder head |
| 14 | 6051 | Cylinder head gasket |
