Oil Level Indicator and Tube: Notes

Material

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil
XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent		 WSS-M2C930-A

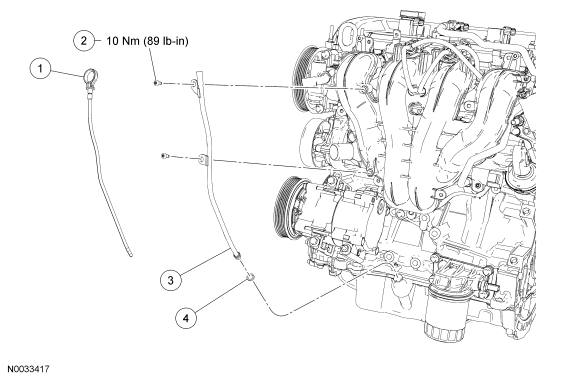

Fig 1: Oil Level Indicator And Tube With Torque Specifications
GF0024105Courtesy of FORD MOTOR CO.
Item Part Number Description
1 6750 Oil level indicator
2 W500211 Oil level indicator tube bolt
3 6754 Oil level indicator tube
4 6754-B O-ring seal
