Valve Cover: Notes

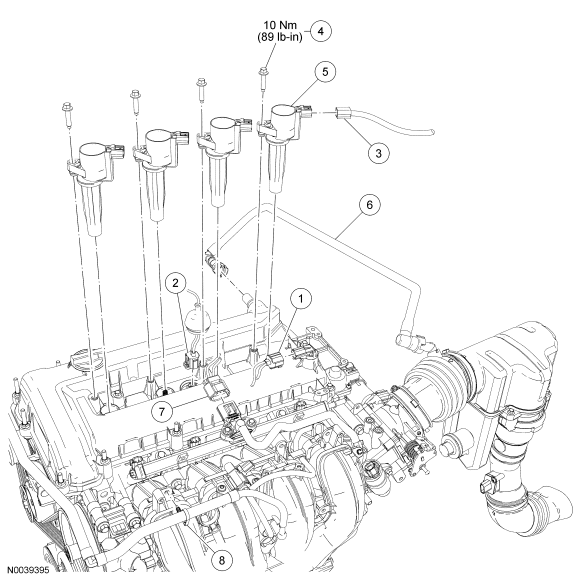

Fig 1: Valve Cover Replacement Components (1 Of 2) With Torque Specifications
GF0039257Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Camshaft position (CMP) sensor electrical connector (part of 12B637)
2 14A464 Cylinder head temperature (CHT) sensor electrical connector (part of 12B637)
3 14A464 Ignition coil-on-plug electrical connector (4 required)
4 W500215 Ignition coil-to-valve cover bolt (4 required)
5 12A192 Ignition coil (4 required)
6 6853 Crankcase breather tube
7 14A464 Fuel rail pressure and temperature sensor electrical connector (part of 12B637)
8 - Vacuum tube retainer (part of 9E498)

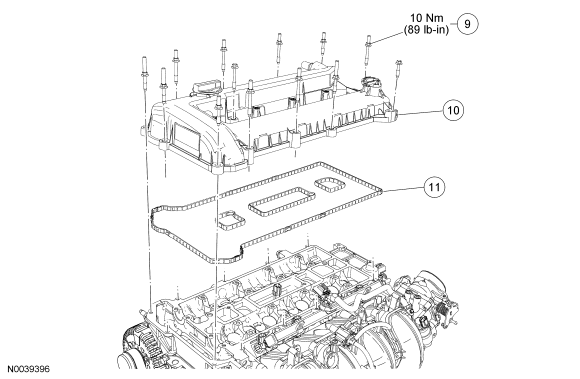

Fig 2: Valve Cover Replacement Components (2 Of 2) With Torque Specifications
GF0039258Courtesy of FORD MOTOR CO.
Item Part Number Description
9 W500215 Valve cover retainer (14 required)
10 6582 Valve cover
11 6584 Valve cover gasket
