Fuel Rail
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |

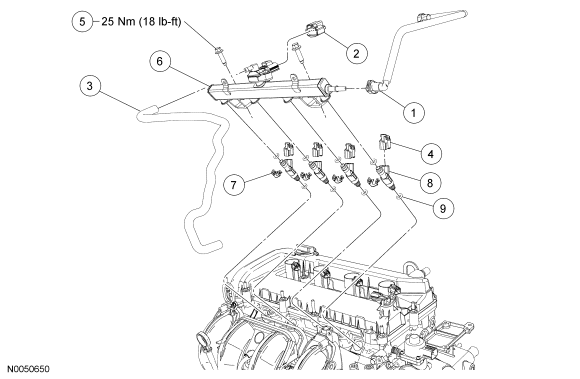

| Item | Part Number | Description |
|---|---|---|
| 1 | 9288 | Fuel tube quick release coupling |
| 2 | 14A464 | Fuel rail pressure and temperature sensor electrical connector (part of 12B637) |
| 3 | 9D430 | Fuel rail pressure and temperature sensor vacuum tube |
| 4 | 14A464 | Fuel injector electrical connector (4 required) (part of 12B637) |
| 5 | W500224 | Fuel rail bolt (2 required) |
| 6 | 9H487 | Fuel rail |
| 7 | 9C995 | Fuel injector clip (4 required) |
| 8 | 9F593 | Fuel injector (4 required) |
| 9 | 9229 | Fuel injector O-ring seal (2 required per injector) |
- Disconnect the fuel tube quick release coupling from the fuel rail and position the tube aside. For additional information, refer to FUEL SYSTEM - GENERAL INFORMATION article.
- Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES article.
- Disconnect the 4 fuel injector electrical connectors.
- Disconnect the fuel rail pressure and temperature sensor electrical connector and vacuum tube.
- Remove the 2 bolts and the fuel rail and injectors.
- To install, tighten to 25 Nm (18 lb-ft).
- If necessary, remove the fuel injector retaining clips and the fuel injectors.
- Remove and discard the O-ring seals.
- To install, reverse the removal procedure.
WARNING:
Do not smoke or carry lighted tobacco or open flame of any type when working on or near fuel-related components. Highly flammable vapors are always present and can ignite. Failure to follow these instructions can result in personal injury.
WARNING:
Fuel in the fuel system remains under high pressure even when the engine is not running. Before working on or disconnecting any of the fuel lines or fuel system components, the fuel system pressure must be relieved. Failure to follow these instructions can result in personal injury.
CAUTION:
Use O-ring seals that are made of special fuel resistant material. Use of ordinary O-rings can cause the fuel system to leak. Do not reuse the O-ring seals.
NOTE:
Install new O-ring seals and lubricate them with clean engine oil.
