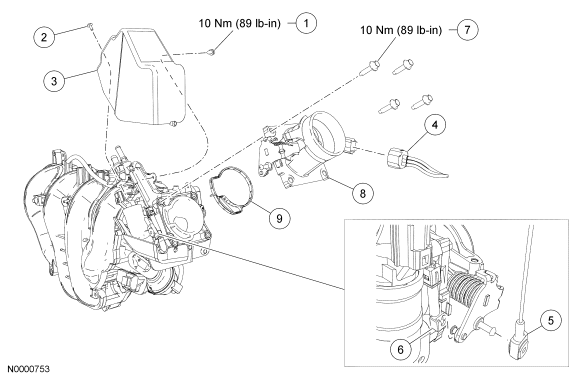

Throttle Body
| Item | Part Number | Description |
|---|---|---|
| 1 | W500410-S | Upper snow shield-to-intake manifold screw |
| 2 | W710378-S | Upper snow shield-to-intake manifold pin-type retainer |
| 3 | 9E776 | Upper snow shield |
| 4 | 14A464 | Throttle position (TP) sensor electrical connector (part of 12B637) |
| 5 | 9A758 | Accelerator cable |
| 6 | 9A825 | Speed control cable |
| 7 | W500305-S | Throttle body-to-upper intake manifold bolt (4 required) |
| 8 | 9F991 | Throttle body |
| 9 | - | Gasket (part of 9F991) |
- Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES article.
- Remove the air cleaner outlet pipe.
- Disconnect the crankcase breather tube.
- Loosen the clamps.
- Remove the air cleaner outlet pipe.
- To install, tighten the clamps to 4 Nm (35 lb-in).
- Remove the accelerator control snow shield.
- Remove the upper snow shield screw and pin-type retainer.
- To install, tighten to 10 Nm (89 lb-in).
- Detach the accelerator and speed control cable (if equipped) from the throttle body.
- Disconnect the throttle position (TP) sensor electrical connector.
- Remove the 4 bolts and the throttle body.
- Inspect the throttle body gasket and install new as necessary.
- To install, tighten to 10 Nm (89 lb-in) in the sequence shown.
- To install, reverse the removal procedure.
CAUTION:
Throttle body bore and plate area have a special coating and cannot be cleaned, or possible damage to the throttle body can occur.
