Instrument Panel Air Distribution Ducts: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

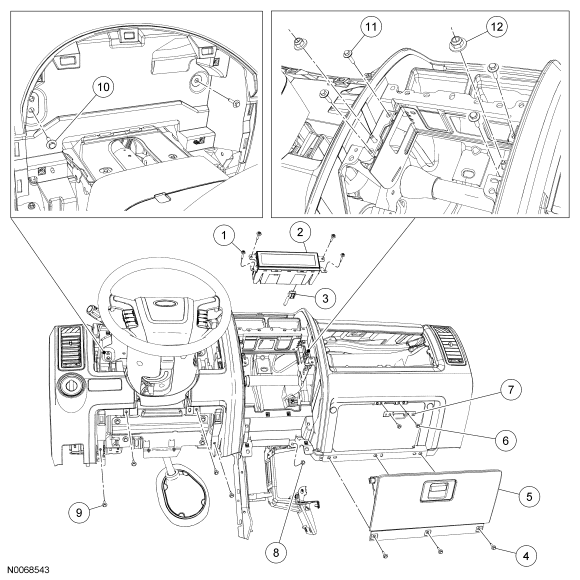

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W710147 |
Front display interface module (FDIM) screw (4 required) |
| 2 |
10D885 |
FDIM |
| 3 |
- |
FDIM electrical connector (part of 14401) |
| 4 |
W710506 |
Glove compartment screw (3 required) |
| 5 |
7806024 |
Glove compartment |
| 6 |
W710506 |
Glove compartment latch striker screw |
| 7 |
7806064 |
Glove compartment latch striker |
| 8 |
W705093 |
Lower center instrument panel trim screw |
| 9 |
W710506 |
Lower steering column opening instrument panel trim screws |
| 10 |
W710506 |
Instrument cluster opening instrument panel trim screw (2 required) |
| 11 |
W707628 |
Instrument panel trim-to-audio unit bracket screw (4 required) |
| 12 |
W701152 |
Instrument panel trim-to-audio unit bracket nut (2 required) |

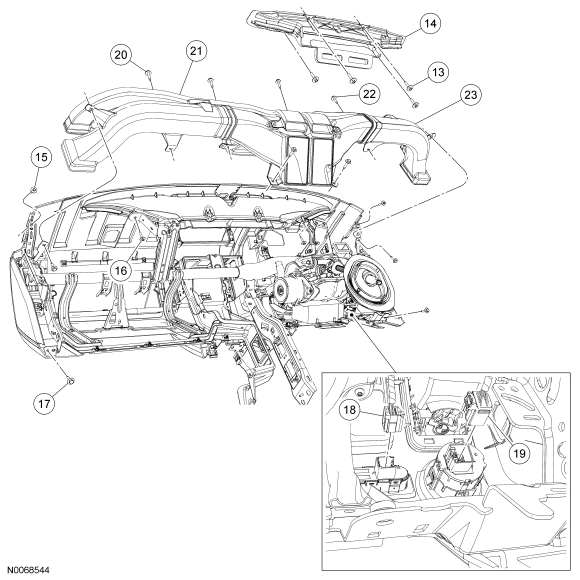

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 13 |
W706473 |
Defroster duct adapter screw (4 required) |
| 14 |
19C580 |
Defroster duct adapter |
| 15 |
W706473 |
Upper corner instrument panel trim screw (2 required) |
| 16 |
W706473 |
Instrument panel support-to-defroster duct screw (2 required) |
| 17 |
W710506 |
Lower corner instrument panel trim screw (2 required) |
| 18 |
- |
Message center switch electrical connector (part of 14401) |
| 19 |
- |
Headlamp switch electrical connector (part of 14401) |
| 20 |
W710506 |
LH instrument panel duct assembly screw (4 required) |
| 21 |
19B680 |
LH instrument panel duct assembly |
| 22 |
W710506 |
RH instrument panel duct assembly screw (4 required) |
| 23 |
19B680 |
RH instrument panel duct assembly |
