Auxiliary Coolant Flow Pump: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

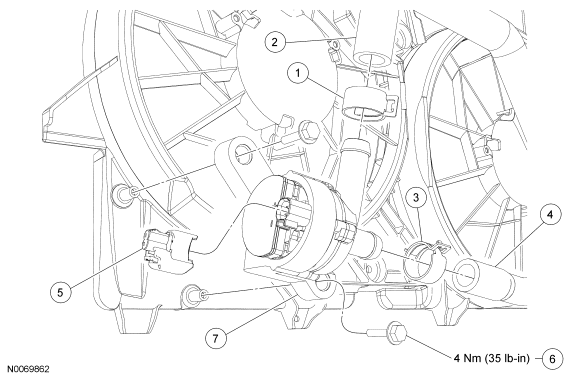

| Item | Part Number | Description |
|---|---|---|
| 1 | W527362 | Auxiliary coolant pump-to-thermostat hose clamp |
| 2 | 18C553 | Auxiliary coolant pump-to-thermostat hose |
| 3 | W527362 | Heater outlet hose clamp |
| 4 | 18472 | Heater outlet hose |
| 5 | - | Auxiliary coolant flow pump electrical connector (part of 14290) |
| 6 | N806181 | Auxiliary coolant flow pump bolt (2 required) |
| 7 | 18D473 | Auxiliary coolant flow pump and rubber bracket assembly |
