Receiver Drier - Hybrid: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D |
WSH-M1C231-B |

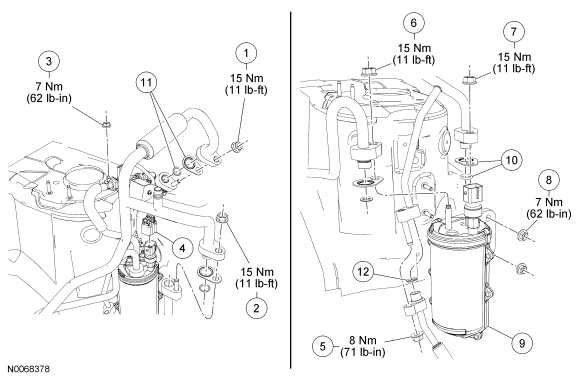

| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | Evaporator outlet line fitting nut |
| 2 | W520413 | Auxiliary evaporator outlet line fitting nut |
| 3 | W707137 | Passenger zone valve bracket nut |
| 4 | - | Dual-function pressure switch electrical connector (part of 14290) |
| 5 | W520413 | Auxiliary evaporator inlet line fitting nut |
| 6 | W520413 | Receiver/drier inlet fitting nut |
| 7 | W520413 | Receiver/drier outlet fitting nut |
| 8 | W707137 | Receiver/drier nut (2 required) |
| 9 | 19959 | Receiver/drier |
| 10 | 19B596 | O-ring seal and gasket seal kit |
| 11 | 19B596 | O-ring seal and gasket seal kit (2 required) |
| 12 | 19E889 | O-ring seal |
