Child Safety Seat Tether Anchor - LATCH: Notes

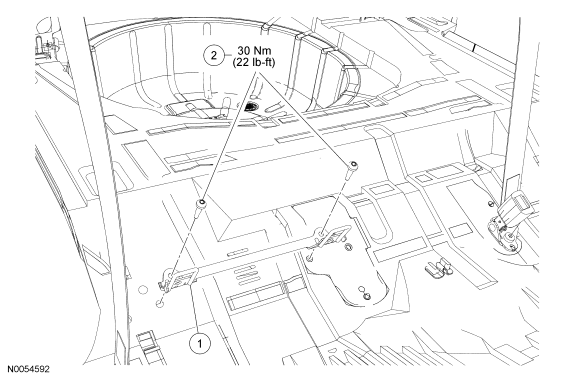

Fig 1: Child Safety Seat Tether Anchor -- Latch Replacement Components With Torque Specifications
GF0039025Courtesy of FORD MOTOR CO.
Item Part Number Description
1 613D46 Lower anchors and tethers for children (LATCH)
2 W705708 Bolts, LATCH (2 required)
