Safety Belt Buckle - Front: Notes

NOTE: RH shown, LH similar.

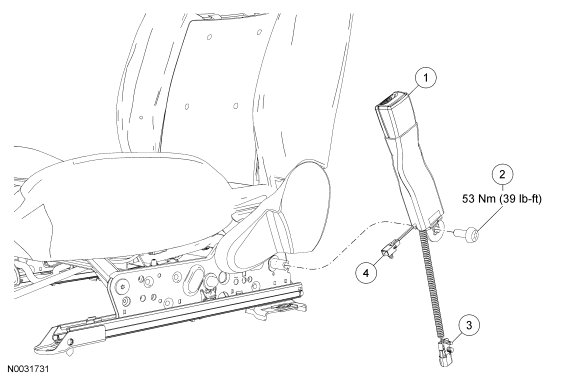

Fig 1: Front Safety Belt Buckle Replacement Components With Torque Specifications
GF0039003Courtesy of FORD MOTOR CO.
Item Part Number Description
1 61202 Safety belt buckle
2 61212 Bolt, safety belt buckle
3 - Electrical connector, belt tension sensor (passenger seat only)
4 - Electrical connector, safety belt buckle switch
