Safety Belt Buckle - Rear: Notes

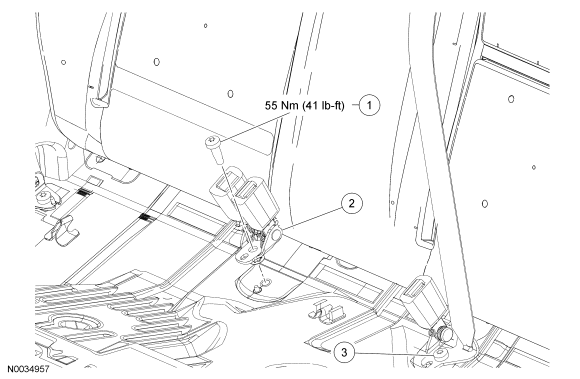

Fig 1: Rear Safety Belt Buckle With Torque Specifications
GF0039007Courtesy of FORD MOTOR CO.
Item Part Number Description
1 60044 RH and center safety belt buckle assembly
2 W701148 Bolt, safety belt buckle
3 - Safety belt buckle (part of 600A38)
