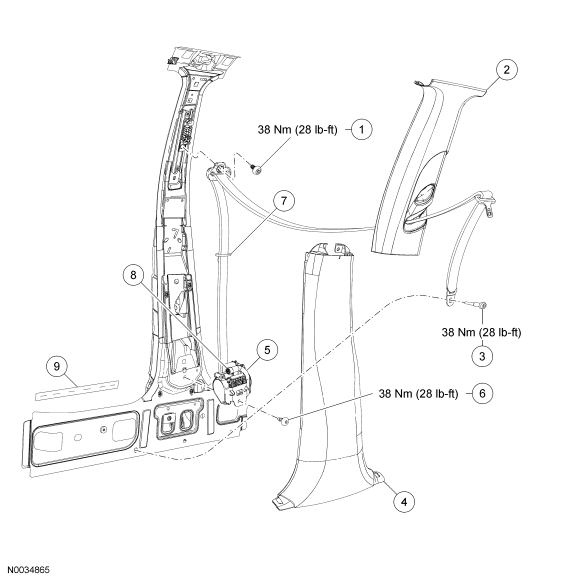

Safety Belt Retractor and Pretensioner: Notes
NOTE:
4-door, 5-door and wagon shown, 3-door similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W706158 | Bolt, safety belt retractor D-ring |
| 2 | 24356 | Trim panel, upper B-pillar |
| 3 | W704314 | Bolt, safety belt retractor anchor |
| 4 | 24346 | Trim panel, lower B-pillar |
| 5 | 611B08 | Safety belt retractor pretensioner assembly |
| 6 | W704400 | Bolt, safety belt retractor pretensioner |
| 7 | - | Safety belt guide loop |
| 8 | - | Electrical connector, safety belt retractor pretensioner |
| 9 | - | Scuff plate (2 required) |
