Power Steering Pump: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Installer Set, Telfon® Seal | 211-D207 (D90P-3517-A) |
Material
| Item | Specification |
|---|---|
| MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada) |
MERCON® |

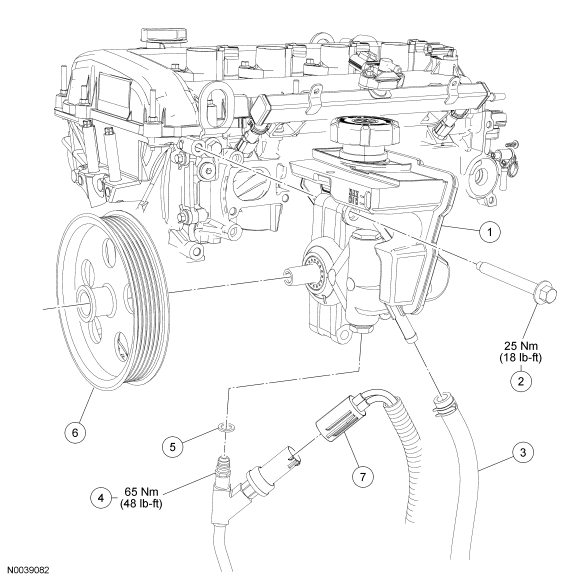

| Item | Part Number | Description |
|---|---|---|
| 1 | 3A674 | Power steering pump |
| 2 | W712054 | Power steering pump bolt (4 required) |
| 3 | 3A713 | Power steering return hose |
| 4 | 3F784 | Power steering pressure line |
| 5 | 3F886 | Power steering pressure line Teflon® O-ring seal |
| 6 | 3A733 | Power steering pump pulley |
| 7 | - | Power steering pressure switch electrical connector |
