Steering Gear Boot: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Installer, Constant Velocity Joint Boot Clamp | 205-343 (T95P-3514-A) | |
| Remover, Tie-Rod End | 211-001 (Tool-3290-D) |
Material
| Item | Specification |
|---|---|
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |

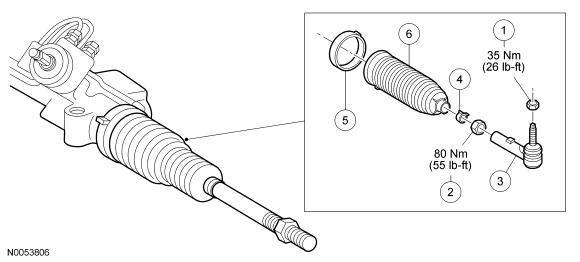

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Tie rod-to-wheel knuckle nut |
| 2 | 19G405 | Tie-rod jam nut |
| 3 | 3289 | Tie-rod end |
| 4 | 3C650 | Outer bellows boot clamp |
| 5 | 3K745 | Inner bellows boot clamp |
| 6 | 3K661 | Bellows boot |
