Tie Rod - Outer: Notes

Special Tools

Illustration Tool Name Tool Number
GF0039493
 Remover, Tie-Rod End 211-001 (Tool-3290-D)

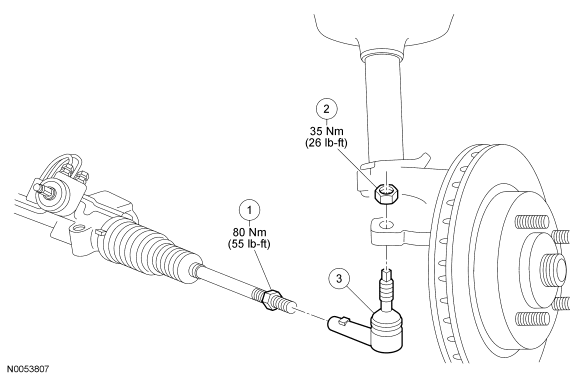

Fig 1: Outer Tie Rod Replacement Components With Torque Specifications
GF0040306Courtesy of FORD MOTOR CO.
Item Part Number Description
1 19G405 Tie-rod jam nut
2 W520203 Nut
3 3289 Tie-rod end
