Clutch Controls: Notes

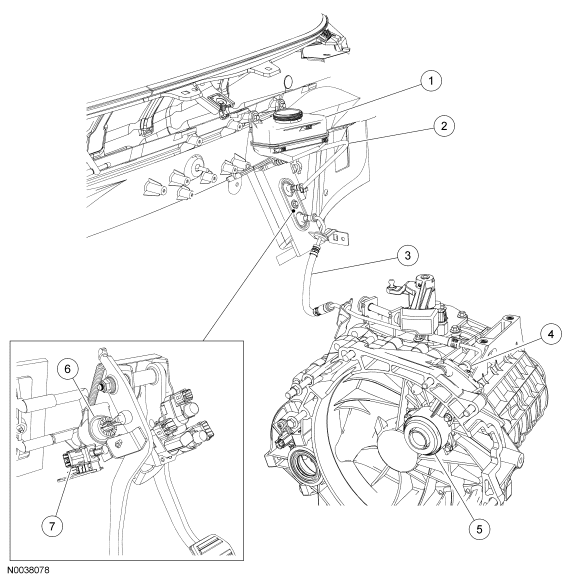

Fig 1: Identifying Clutch Mechanism Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	2K478	Brake fluid reservoir
2	-	Upper hydraulic line
3	-	Lower hydraulic line
4	-	Bleed screw
5	7A564	Clutch slave cylinder with integral release bearing
6	7A543	Clutch master cylinder
7	11A152	Clutch pedal position switch
