Disassembly And Assembly Of Subassemblies: Differential: Notes

Special Tools

Illustration	Tool Name	Tool Number
	Installer Differential Bearing	205-062 (15-025A)
	Step Plate	205-D015 (T80L-630-4)
	Bearing Puller	205-D064 (D84L-1123-A) or equivalent
	Remover/Installer, Front Wheel Hub	204-069 (T81P-1104-C)

Material

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

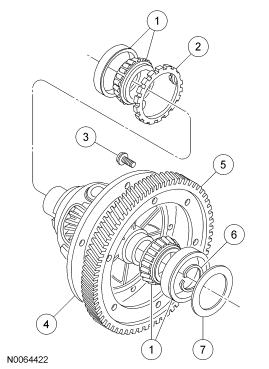

Fig 1: Identifying Differential Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	4220	Differential bearings and cups
2	7M118	Speed sensor wheel
3	-	Differential case bolt
4	4026	Differential case
5	7F343	Differential gear
6	-	Ring
7	4548	Shim
