Selector Mechanism

Special Tools

Illustration Tool Name Tool Number
GF0040076
 Support Bar, Engine 303-290A
GF0009356
 Adapter for 303-290A (Support Leg) 303-290-03A
GF0029846
 Adapter for 303-290A 303-290-01
Material

Item Specification
Gasket Maker
TA-16		 WSK-M2G348-A5

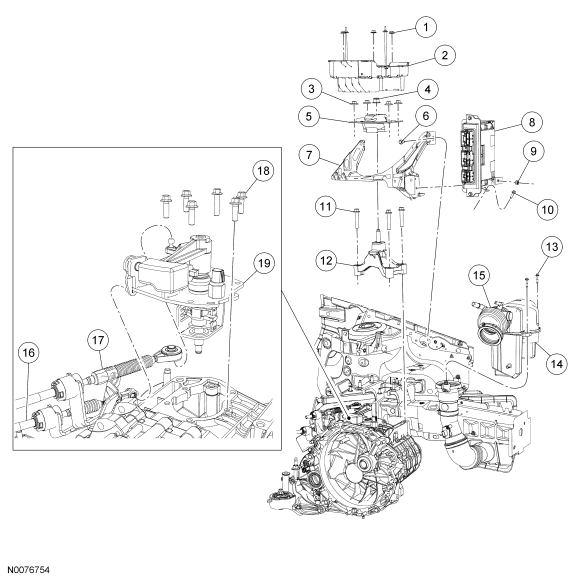

Fig 1: Selector Mechanism Components
GF0040077Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W700069-S Battery tray nut (3 required)
2 10723 Battery tray
3 W703457-S LH transaxle support insulator nut (4 required)
4 W520215-S LH transaxle support insulator nut
5 7M121 LH transaxle support insulator
6 W710090-S PCM/battery support bracket bolt (3 required)
7 6K034 PCM/battery support bracket
8 12A651 PCM
9 W520413-S PCM nut
10 W500614-S PCM bolt
11 W706777-S LH transaxle support insulator bracket bolt (3 required)
12 7M125 LH transaxle support insulator bracket
13 - Resonator bolt (2 required)
14 - Resonator
15 - Intake air hose
16 7E395 Gearshift selector cable
17 7E395 Gearshift shift cable
18 W703425-S Selector mechanism bolt (6 required)
19 7201 Selector mechanism
  1. Remove the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES article.
  2. Release the 2 wiring harness pushpins, then remove the 3 battery tray nuts and the battery tray.
    3. Fig 2: Locating Battery Tray Nuts
    GF0040078Courtesy of FORD MOTOR CO.
  3. Remove the intake air hose.
    1. Disconnect the crankcase ventilation hose.
    2. Disconnect the booster bleed hose.
    3. Loosen the clamps and remove the intake air hose.
    4. Fig 3: Identifying Crankcase Ventilation Hose, Booster Bleed Hose And Clamps
    GF0040079Courtesy of FORD MOTOR CO.
  4. Remove the 2 resonator bolts and the resonator.
    • To install, tighten to 11 Nm (8 lb-ft).
    5. Fig 4: Identifying Resonator Bolts
    GF0040080Courtesy of FORD MOTOR CO.
  5. Disconnect the PCM electrical connectors.
    6. Fig 5: Identifying PCM Connectors
    GF0040081Courtesy of FORD MOTOR CO.
  6. Remove the PCM bolt and nut and the PCM.
  7. Remove the 3 PCM/battery support bracket bolts.
    8. Fig 6: Identifying PCM/Battery Support Bracket Bolts
    GF0040082Courtesy of FORD MOTOR CO.
  8. Install the special tools.

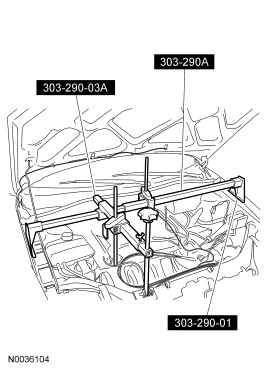

    9. Fig 7: Identifying Special Tools
    GF0040083Courtesy of FORD MOTOR CO.
  9. Remove the 5 LH transaxle support insulator nuts and the LH transaxle support insulator with the PCM/battery support bracket.
    • To install, tighten the center nut to 150 Nm (111 lb-ft).
    • Tighten the outer nuts to 48 Nm (35 lb-ft).
    10. Fig 8: Identifying LH Transaxle Support Insulator Nuts
    GF0040084Courtesy of FORD MOTOR CO.
  10. Remove the 3 LH transaxle support insulator bolts and the rear engine mount bracket.
    • To install, tighten to 80 Nm (59 lb-ft).
    11. Fig 9: Locating Rear Engine Mount Bracket Bolts
    GF0040085Courtesy of FORD MOTOR CO.
  11. Disconnect the reverse lamp switch electrical connector.
    12. Fig 10: Locating Reverse Lamp Switch Electrical Connector
    GF0040086Courtesy of FORD MOTOR CO.
  12. Pressing the locking tab, disconnect the gearshift cables from the transaxle.
    1. Disconnect the shift cable from the shift mass.
    2. Disconnect the selector cable from the selector lever.
    13. Fig 11: Identifying Shift Cable And Selector Cable
    GF0040087Courtesy of FORD MOTOR CO.
    NOTE: Make sure the transaxle is in the NEUTRAL position.
  13. Position the transaxle in the NEUTRAL position. Remove the 6 selector mechanism bolts and the selector mechanism.
    • To install, tighten the bolts in a star pattern to 23 Nm (17 lb-ft).
  14. To install, reverse the removal procedure.
