Anti-Lock Brake System Module Connector

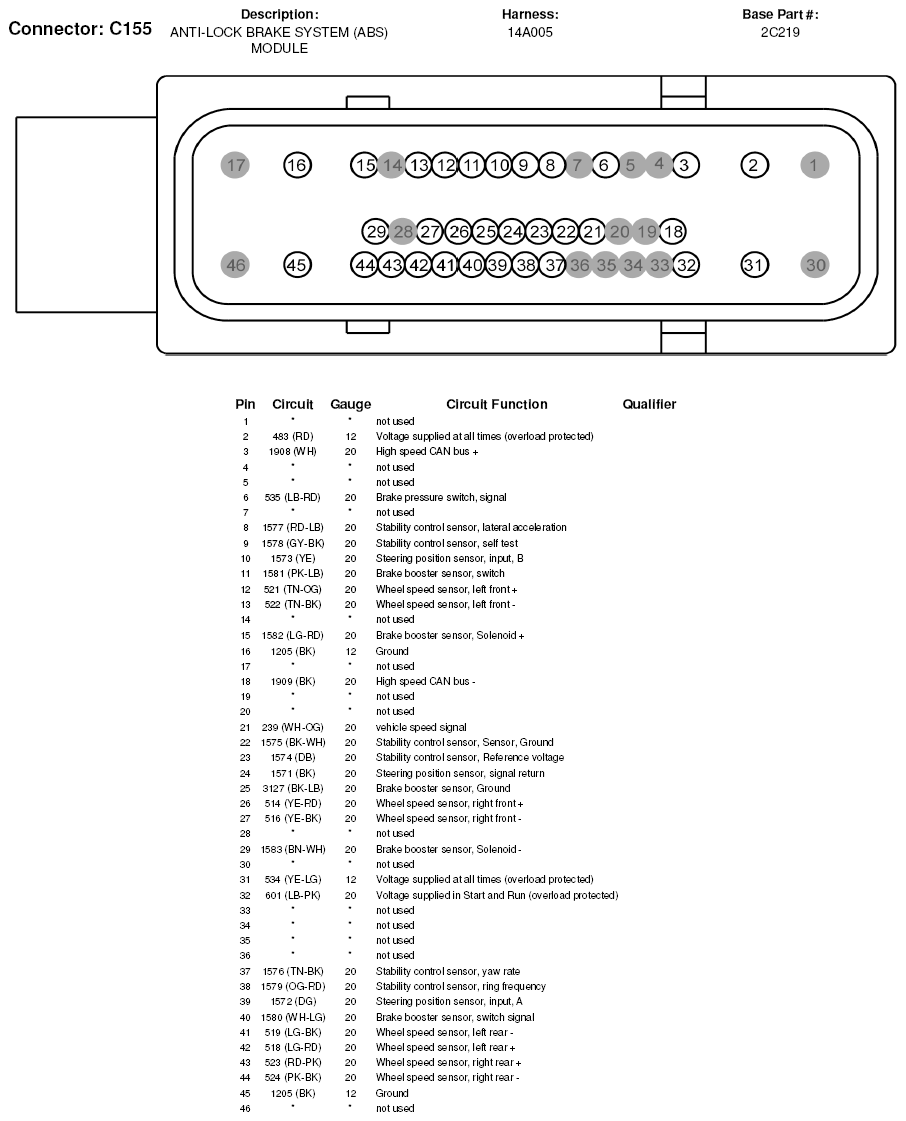

Fig 1: Anti-Lock Brake System Module Connector End View (C155)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
