Passive Antitheft Transceiver Module Connector

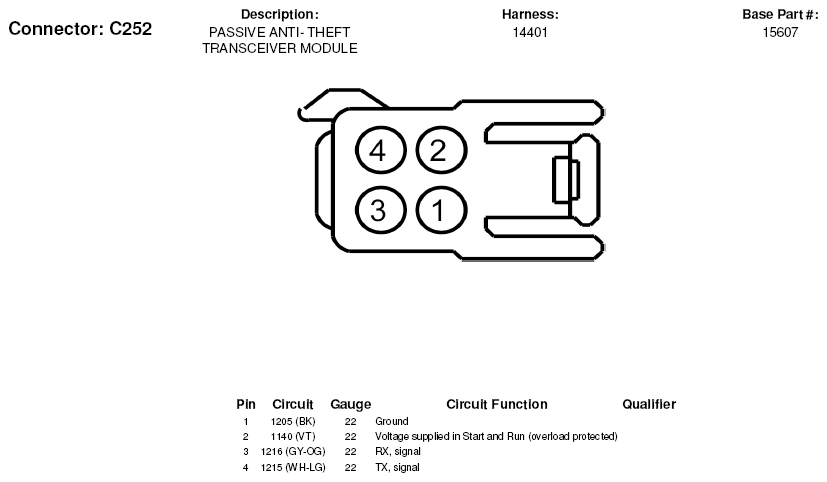

Fig 1: Passive Antitheft Transceiver Module Connector End View (C252)
G05181516Courtesy of FORD MOTOR CO.
