Liftgate Module / Trunk Module Connector

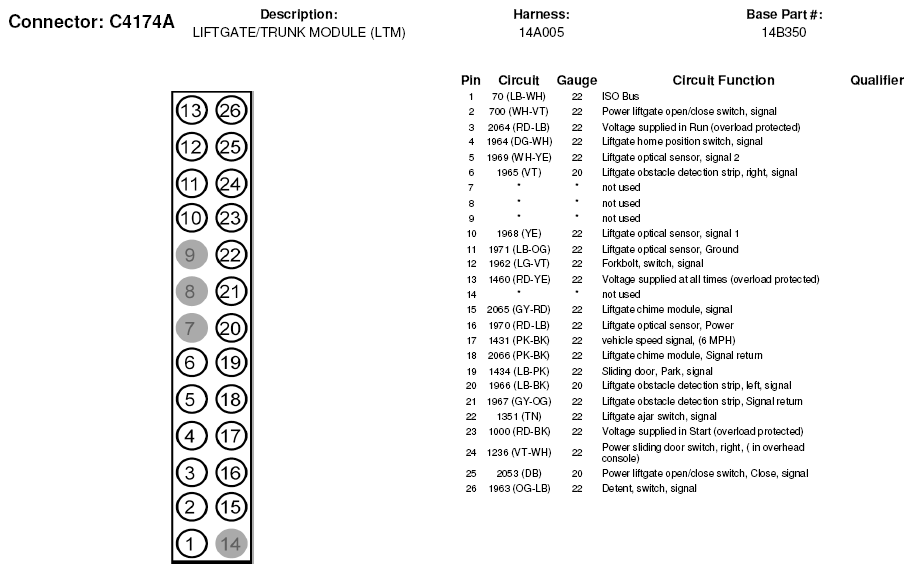

Fig 1: Liftgate Module / Trunk Module Connector End View (C4174A)
G05181746Courtesy of FORD MOTOR CO.

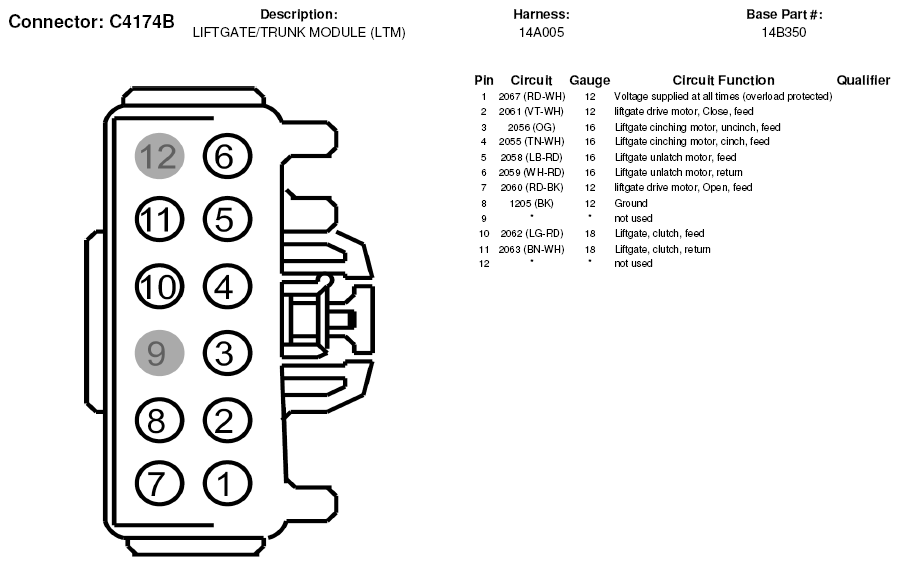

Fig 2: Liftgate Module / Trunk Module Connector End View (C4174B)
G05181747Courtesy of FORD MOTOR CO.
