Powertrain Control Module (PCM): Notes

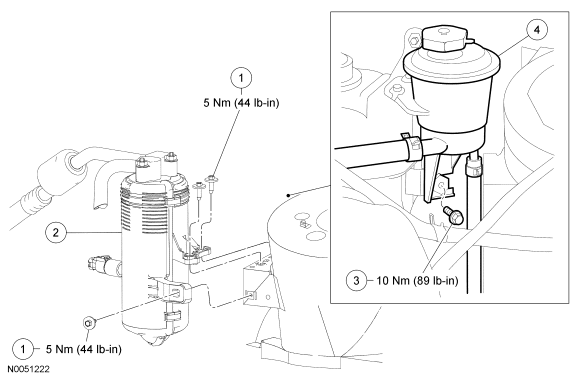

Fig 1: Exploded View Of Accumulator & Power Steering Reservoir With Torque Specifications
GF0033267Courtesy of FORD MOTOR CO.

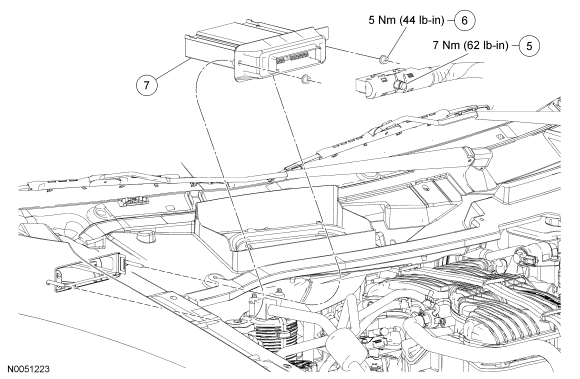

Fig 2: Exploded View Of Powertrain Control Module PCM With Torque Specifications
GF0033268Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N807658 Suction accumulator bolt (3 required)
2 19C836 Suction accumulator
3 N605893 Lower reservoir bolt
4 3R700 Power steering reservoir
5 14A464 Powertrain control module (PCM) electrical connector
6 N621905-S PCM retaining nut (2 required)
7 12A650 PCM
