Restraints Control Module (RCM): Notes

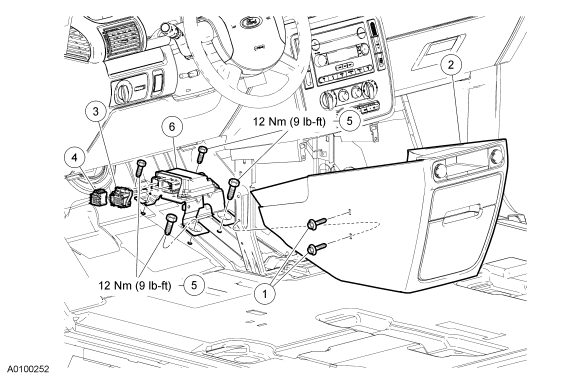

Fig 1: Exploded View Of Restraints Control Module RCM With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Scrivets (4 required)
2	-	Utility compartment
3	-	Large restraint control module (RCM) electrical connector (part of 14A005)
4	-	Small RCM electrical connector (part of 14401)
5	W707935	RCM bracket bolts (4 required)
6	14B321	RCM
