Steering Wheel Rotation Sensor

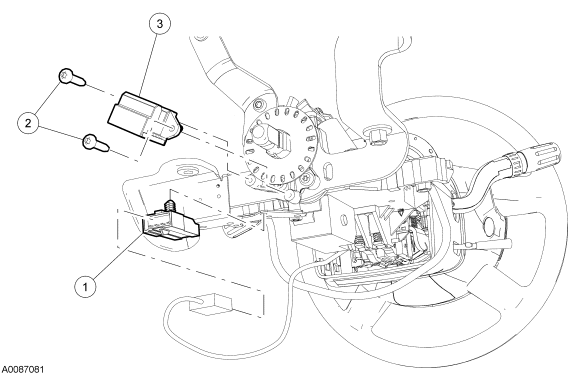

Fig 1: Exploded View Of Steering Wheel Rotation Sensor

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Steering wheel rotation sensor electrical connector
2	-	Steering wheel rotation sensor screws (2 required)
3	3F818	Steering wheel rotation sensor

NOTE: When installing a new steering wheel rotation sensor, the anti-lock brake system (ABS) module must be configured (using vehicle as-built data) and calibrated. Follow the scan tool directions for the calibration procedures. For module configuration, refer to MODULE CONFIGURATION article.

Disconnect the steering wheel rotation sensor electrical connector.
Remove the 2 steering wheel rotation sensor screws.
Remove the steering wheel rotation sensor.
To install, reverse the removal procedure.
